Android 中的 LifeCycle

/**
 * A class that has an Android lifecycle. These events can be used by custom components to
 * handle lifecycle changes without implementing any code inside the Activity or the Fragment.
 */
@SuppressWarnings({"WeakerAccess", "unused"})
public interface LifecycleOwner {
    /**
     * Returns the Lifecycle of the provider.
     *
     * @return The lifecycle of the provider.
     */
    @NonNull
    Lifecycle getLifecycle();
}

/**
 * Marks a class as a LifecycleObserver. It does not have any methods, instead, relies on
 * OnLifecycleEvent annotated methods.
 */
@SuppressWarnings("WeakerAccess")
public interface LifecycleObserver {

}

@Retention(RetentionPolicy.RUNTIME)
@Target(ElementType.METHOD)
public @interface OnLifecycleEvent {
    Lifecycle.Event value();
}

@NonNull
static GenericLifecycleObserver getCallback(final Object object) {
    final LifecycleEventObserver observer = lifecycleEventObserver(object);
    return new GenericLifecycleObserver() {
        @Override
        public void onStateChanged(@NonNull LifecycleOwner source,
                                   @NonNull Lifecycle.Event event) {
          	observer.onStateChanged(source, event);
        }
    };
}

static LifecycleEventObserver lifecycleEventObserver(Object object) {
    boolean isLifecycleEventObserver = object instanceof LifecycleEventObserver;
    boolean isFullLifecycleObserver = object instanceof FullLifecycleObserver;
    if (isLifecycleEventObserver && isFullLifecycleObserver) {
      	return new FullLifecycleObserverAdapter((FullLifecycleObserver) object,
                                              (LifecycleEventObserver) object);
    }
    if (isFullLifecycleObserver) {
      	return new FullLifecycleObserverAdapter((FullLifecycleObserver) object, null);
    }

    if (isLifecycleEventObserver) {
      	return (LifecycleEventObserver) object;
    }

    final Class<?> klass = object.getClass();
    int type = getObserverConstructorType(klass);
    if (type == GENERATED_CALLBACK) {
        List<Constructor<? extends GeneratedAdapter>> constructors =
          sClassToAdapters.get(klass);
        if (constructors.size() == 1) {
            GeneratedAdapter generatedAdapter = createGeneratedAdapter(
              constructors.get(0), object);
            return new SingleGeneratedAdapterObserver(generatedAdapter);
        }
        GeneratedAdapter[] adapters = new GeneratedAdapter[constructors.size()];
        for (int i = 0; i < constructors.size(); i++) {
          	adapters[i] = createGeneratedAdapter(constructors.get(i), object);
        }
        return new CompositeGeneratedAdaptersObserver(adapters);
    }
    return new ReflectiveGenericLifecycleObserver(object);
}

/**
 * Adds a LifecycleObserver that will be notified when the LifecycleOwner changes state.
 * The given observer will be brought to the current state of the LifecycleOwner.
 * For example, if the LifecycleOwner is in STARTED state, the given observer will receive Event.ON_CREATE events.
 *
 * @param observer The observer to notify.
 */
@MainThread
public abstract void addObserver(@NonNull LifecycleObserver observer);

@NonNull
@Override
public Lifecycle getLifecycle() {
  	return mLifecycleRegistry;
}

private final LifecycleRegistry mLifecycleRegistry = new LifecycleRegistry(this);

// LifecycleRegistry.java

// 保存 LifecycleObserver 及其对应的 State
private FastSafeIterableMap<LifecycleObserver, ObserverWithState> mObserverMap =
        new FastSafeIterableMap<>();

// 当前生命周期状态
private State mState;

@Override
public void addObserver(@NonNull LifecycleObserver observer) {
    State initialState = mState == DESTROYED ? DESTROYED : INITIALIZED;
  	// ObserverWithState 是一个静态内部类，后述
    ObserverWithState statefulObserver = new ObserverWithState(observer, initialState);
    ObserverWithState previous = mObserverMap.putIfAbsent(observer, statefulObserver);

    if (previous != null) {
      	return;
    }
    LifecycleOwner lifecycleOwner = mLifecycleOwner.get();
    if (lifecycleOwner == null) {
        // it is null we should be destroyed. Fallback quickly
        return;
    }

  	// 判断是否重入
    boolean isReentrance = mAddingObserverCounter != 0 || mHandlingEvent;

  	// 引入 parentState, targetState 等都是为了保证列表中后加的 Observer 的状态不能大于前面的， 这样做之后，如果列表第一个和最后一个的状态和 LifecycleRegistry.mState 相等时，就说明状态同步完成了。
    State targetState = calculateTargetState(observer);
    mAddingObserverCounter++;

  	// 如果观察者的初始状态小于 targetState ，则同步到 targetState
    while ((statefulObserver.mState.compareTo(targetState) < 0
            && mObserverMap.contains(observer))) {
        pushParentState(statefulObserver.mState);

      	// 状态转移
        statefulObserver.dispatchEvent(lifecycleOwner, upEvent(statefulObserver.mState));
        popParentState();
        // mState / subling may have been changed recalculate
        targetState = calculateTargetState(observer);
    }

    if (!isReentrance) {
        // we do sync only on the top level.
        sync();
    }
    mAddingObserverCounter--;
}

/**
 * 计算出的 targetState 一定是小于等于当前 mState 的
 */
private State calculateTargetState(LifecycleObserver observer) {
  	// 获取当前 Observer 的前一个 Observer
  	Entry<LifecycleObserver, ObserverWithState> previous = mObserverMap.ceil(observer);

  	State siblingState = previous != null ? previous.getValue().mState : null;
    // 无重入情况下可不考虑 parentState ，为 null
    State parentState = !mParentStates.isEmpty() ? mParentStates.get(mParentStates.size() - 1)
    : null;
  	return min(min(mState, siblingState), parentState);
}

@Override
protected void onCreate(@Nullable Bundle savedInstanceState) {
  	super.onCreate(savedInstanceState);
  	ReportFragment.injectIfNeededIn(this);
}

public static void injectIfNeededIn(Activity activity) {
    if (Build.VERSION.SDK_INT >= 29) {
        // On API 29+, we can register for the correct Lifecycle callbacks directly
        activity.registerActivityLifecycleCallbacks(
          new LifecycleCallbacks());
    }
    // Prior to API 29 and to maintain compatibility with older versions of
    // ProcessLifecycleOwner (which may not be updated when lifecycle-runtime is updated and
    // need to support activities that don't extend from FragmentActivity from support lib),
    // use a framework fragment to get the correct timing of Lifecycle events
    android.app.FragmentManager manager = activity.getFragmentManager();
    if (manager.findFragmentByTag(REPORT_FRAGMENT_TAG) == null) {
        manager.beginTransaction().add(new ReportFragment(), REPORT_FRAGMENT_TAG).commit();
        // Hopefully, we are the first to make a transaction.
        manager.executePendingTransactions();
    }
}

@Override
public void onActivityCreated(Bundle savedInstanceState) {
    super.onActivityCreated(savedInstanceState);
    dispatchCreate(mProcessListener);
    dispatch(Lifecycle.Event.ON_CREATE);
}

@Override
public void onStart() {
    super.onStart();
    dispatchStart(mProcessListener);
    dispatch(Lifecycle.Event.ON_START);
}

@Override
public void onResume() {
    super.onResume();
    dispatchResume(mProcessListener);
    dispatch(Lifecycle.Event.ON_RESUME);
}

@Override
public void onPause() {
    super.onPause();
    dispatch(Lifecycle.Event.ON_PAUSE);
}

@Override
public void onStop() {
    super.onStop();
    dispatch(Lifecycle.Event.ON_STOP);
}

@Override
public void onDestroy() {
    super.onDestroy();
    dispatch(Lifecycle.Event.ON_DESTROY);
    // just want to be sure that we won't leak reference to an activity
    mProcessListener = null;
}

static void dispatch(@NonNull Activity activity, @NonNull Lifecycle.Event event) {
    if (activity instanceof LifecycleRegistryOwner) {
        ((LifecycleRegistryOwner) activity).getLifecycle().handleLifecycleEvent(event);
        return;
    }

    if (activity instanceof LifecycleOwner) {
        Lifecycle lifecycle = ((LifecycleOwner) activity).getLifecycle();
        if (lifecycle instanceof LifecycleRegistry) {
          	((LifecycleRegistry) lifecycle).handleLifecycleEvent(event);
        }
    }
}

// 设置当前状态并通知观察者
public void handleLifecycleEvent(@NonNull Lifecycle.Event event) {
    State next = getStateAfter(event);
    moveToState(next);
}

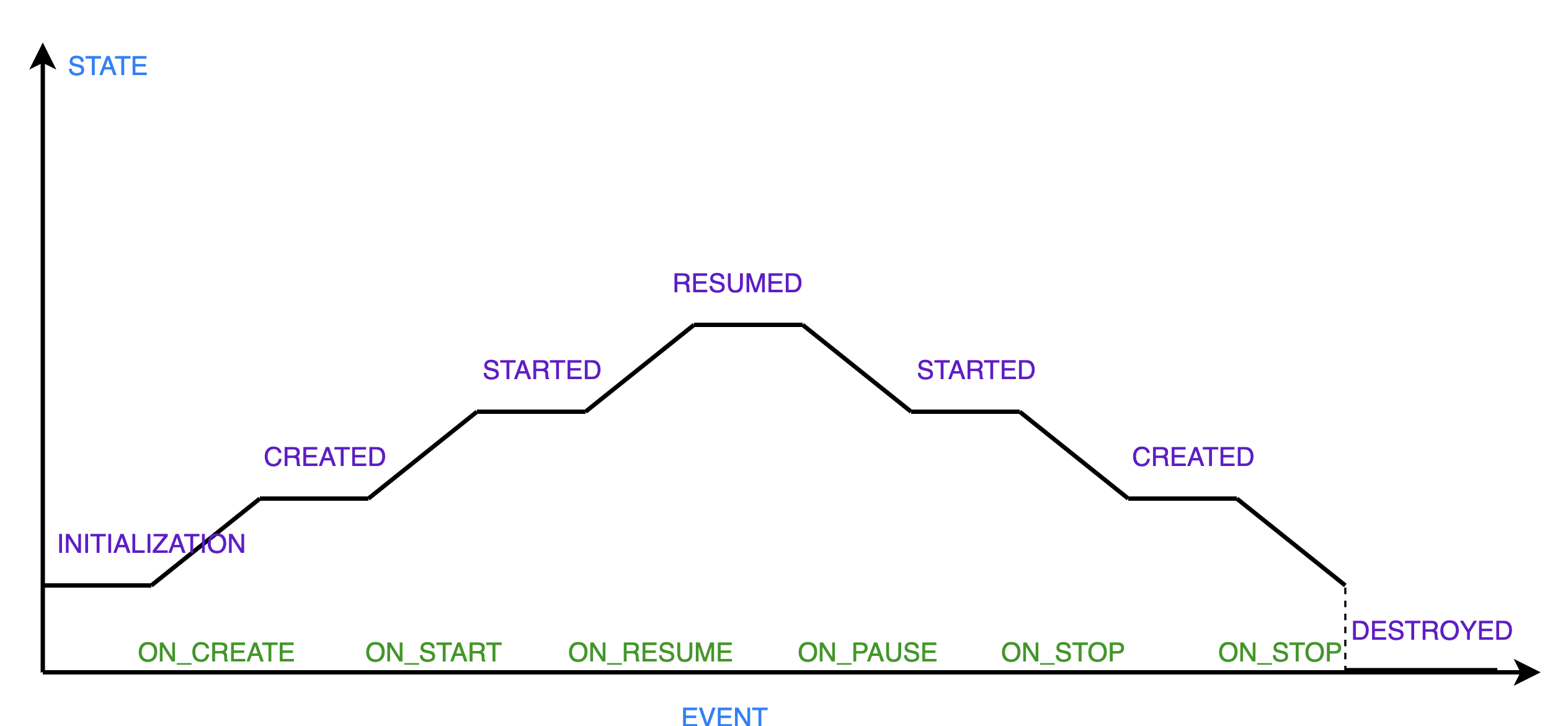

static State getStateAfter(Event event) {
    switch (event) {
        case ON_CREATE:
        case ON_STOP:
            return CREATED;
        case ON_START:
        case ON_PAUSE:
            return STARTED;
        case ON_RESUME:
            return RESUMED;
        case ON_DESTROY:
            return DESTROYED;
        case ON_ANY:
            break;
    }
    throw new IllegalArgumentException("Unexpected event value " + event);
}

private void moveToState(State next) {
    if (mState == next) {
        return;
    }
    mState = next;
    if (mHandlingEvent || mAddingObserverCounter != 0) {
        mNewEventOccurred = true;
        // we will figure out what to do on upper level.
        return;
    }
    mHandlingEvent = true;
    sync();
    mHandlingEvent = false;
}

private void sync() {
    LifecycleOwner lifecycleOwner = mLifecycleOwner.get();
    if (lifecycleOwner == null) {
        Log.w(LOG_TAG, "LifecycleOwner is garbage collected, you shouldn't try dispatch "
                + "new events from it.");
        return;
    }
    while (!isSynced()) {
        mNewEventOccurred = false;
        // mState 是当前状态，如果 mState 小于 mObserverMap 中的状态值，调用 backwardPass()
        if (mState.compareTo(mObserverMap.eldest().getValue().mState) < 0) {
            backwardPass(lifecycleOwner);
        }
        Entry<LifecycleObserver, ObserverWithState> newest = mObserverMap.newest();
        // 如果 mState 大于 mObserverMap 中的状态值，调用 forwardPass()
        if (!mNewEventOccurred && newest != null
                && mState.compareTo(newest.getValue().mState) > 0) {
            forwardPass(lifecycleOwner);
        }
    }
    mNewEventOccurred = false;
}

private void forwardPass(LifecycleOwner lifecycleOwner) {
    Iterator<Entry<LifecycleObserver, ObserverWithState>> ascendingIterator =
            mObserverMap.iteratorWithAdditions();
    while (ascendingIterator.hasNext() && !mNewEventOccurred) {
        Entry<LifecycleObserver, ObserverWithState> entry = ascendingIterator.next();
        ObserverWithState observer = entry.getValue();
        // 向上传递事件，直到 observer 的状态值等于当前状态值
        while ((observer.mState.compareTo(mState) < 0 && !mNewEventOccurred
                && mObserverMap.contains(entry.getKey()))) {
            pushParentState(observer.mState);
            // 分发生命周期事件
            observer.dispatchEvent(lifecycleOwner, upEvent(observer.mState));
            popParentState();
        }
    }
}

private void backwardPass(LifecycleOwner lifecycleOwner) {
    Iterator<Entry<LifecycleObserver, ObserverWithState>> descendingIterator =
            mObserverMap.descendingIterator();
    while (descendingIterator.hasNext() && !mNewEventOccurred) {
        Entry<LifecycleObserver, ObserverWithState> entry = descendingIterator.next();
        ObserverWithState observer = entry.getValue();
        // 向下传递事件，直到 observer 的状态值等于当前状态值
        while ((observer.mState.compareTo(mState) > 0 && !mNewEventOccurred
                && mObserverMap.contains(entry.getKey()))) {
            Event event = downEvent(observer.mState);
            pushParentState(getStateAfter(event));
            // 分发生命周期事件
            observer.dispatchEvent(lifecycleOwner, event);
            popParentState();
        }
    }
}

private static Event upEvent(State state) {
    switch (state) {
        case INITIALIZED:
        case DESTROYED:
            return ON_CREATE;
        case CREATED:
            return ON_START;
        case STARTED:
            return ON_RESUME;
        case RESUMED:
            throw new IllegalArgumentException();
    }
    throw new IllegalArgumentException("Unexpected state value " + state);
}

private static Event downEvent(State state) {
    switch (state) {
        case INITIALIZED:
            throw new IllegalArgumentException();
        case CREATED:
            return ON_DESTROY;
        case STARTED:
            return ON_STOP;
        case RESUMED:
            return ON_PAUSE;
        case DESTROYED:
            throw new IllegalArgumentException();
    }
    throw new IllegalArgumentException("Unexpected state value " + state);
}

static class ObserverWithState {
    State mState;
    GenericLifecycleObserver mLifecycleObserver;

    ObserverWithState(LifecycleObserver observer, State initialState) {
        mLifecycleObserver = Lifecycling.getCallback(observer);
        mState = initialState;
    }

    void dispatchEvent(LifecycleOwner owner, Event event) {
        State newState = getStateAfter(event);
        mState = min(mState, newState);
        // ReflectiveGenericLifecycleObserver.onStateChanged()
        mLifecycleObserver.onStateChanged(owner, event);
        mState = newState;
    }
}

@NonNull
static GenericLifecycleObserver getCallback(Object object) {
    if (object instanceof FullLifecycleObserver) {
        return new FullLifecycleObserverAdapter((FullLifecycleObserver) object);
    }

    if (object instanceof GenericLifecycleObserver) {
        return (GenericLifecycleObserver) object;
    }

    final Class<?> klass = object.getClass();
    int type = getObserverConstructorType(klass);
    // 获取 type
    // GENERATED_CALLBACK 表示注解生成的代码
    // REFLECTIVE_CALLBACK 表示使用反射
    if (type == GENERATED_CALLBACK) {
        List<Constructor<? extends GeneratedAdapter>> constructors =
                sClassToAdapters.get(klass);
        if (constructors.size() == 1) {
            GeneratedAdapter generatedAdapter = createGeneratedAdapter(
                    constructors.get(0), object);
            return new SingleGeneratedAdapterObserver(generatedAdapter);
        }
        GeneratedAdapter[] adapters = new GeneratedAdapter[constructors.size()];
        for (int i = 0; i < constructors.size(); i++) {
            adapters[i] = createGeneratedAdapter(constructors.get(i), object);
        }
        return new CompositeGeneratedAdaptersObserver(adapters);
    }
    return new ReflectiveGenericLifecycleObserver(object);
}

private static int getObserverConstructorType(Class<?> klass) {
    if (sCallbackCache.containsKey(klass)) {
        return sCallbackCache.get(klass);
    }
    int type = resolveObserverCallbackType(klass);
    sCallbackCache.put(klass, type);
    return type;
}

private static int resolveObserverCallbackType(Class<?> klass) {
    // anonymous class bug:35073837
    // 匿名内部类使用反射
    if (klass.getCanonicalName() == null) {
        return REFLECTIVE_CALLBACK;
    }

    // 寻找注解生成的 GeneratedAdapter 类
    Constructor<? extends GeneratedAdapter> constructor = generatedConstructor(klass);
    if (constructor != null) {
        sClassToAdapters.put(klass, Collections
                .<Constructor<? extends GeneratedAdapter>>singletonList(constructor));
        return GENERATED_CALLBACK;
    }

    // 寻找被 OnLifecycleEvent 注解的方法
    boolean hasLifecycleMethods = ClassesInfoCache.sInstance.hasLifecycleMethods(klass);
    if (hasLifecycleMethods) {
        return REFLECTIVE_CALLBACK;
    }

    // 没有找到注解生成的 GeneratedAdapter 类，也没有找到 OnLifecycleEvent 注解，
    // 则向上寻找父类
    Class<?> superclass = klass.getSuperclass();
    List<Constructor<? extends GeneratedAdapter>> adapterConstructors = null;
    if (isLifecycleParent(superclass)) {
        if (getObserverConstructorType(superclass) == REFLECTIVE_CALLBACK) {
            return REFLECTIVE_CALLBACK;
        }
        adapterConstructors = new ArrayList<>(sClassToAdapters.get(superclass));
    }

    // 寻找是否有接口实现
    for (Class<?> intrface : klass.getInterfaces()) {
        if (!isLifecycleParent(intrface)) {
            continue;
        }
        if (getObserverConstructorType(intrface) == REFLECTIVE_CALLBACK) {
            return REFLECTIVE_CALLBACK;
        }
        if (adapterConstructors == null) {
            adapterConstructors = new ArrayList<>();
        }
        adapterConstructors.addAll(sClassToAdapters.get(intrface));
    }
    if (adapterConstructors != null) {
        sClassToAdapters.put(klass, adapterConstructors);
        return GENERATED_CALLBACK;
    }

    return REFLECTIVE_CALLBACK;
}

boolean hasLifecycleMethods(Class klass) {
    if (mHasLifecycleMethods.containsKey(klass)) {
        return mHasLifecycleMethods.get(klass);
    }

    Method[] methods = getDeclaredMethods(klass);
    for (Method method : methods) {
        OnLifecycleEvent annotation = method.getAnnotation(OnLifecycleEvent.class);
        if (annotation != null) {
            createInfo(klass, methods);
            return true;
        }
    }
    mHasLifecycleMethods.put(klass, false);
    return false;
}

class ReflectiveGenericLifecycleObserver implements GenericLifecycleObserver {
    private final Object mWrapped; // Observer 对象
    private final CallbackInfo mInfo; // 反射获取注解信息

    ReflectiveGenericLifecycleObserver(Object wrapped) {
        mWrapped = wrapped;
        mInfo = ClassesInfoCache.sInstance.getInfo(mWrapped.getClass());
    }

    @Override
    public void onStateChanged(LifecycleOwner source, Event event) {
        // 调用 ClassesInfoCache.CallbackInfo.invokeCallbacks()
        mInfo.invokeCallbacks(source, event, mWrapped);
    }
}

void invokeCallbacks(LifecycleOwner source, Lifecycle.Event event, Object target) {
    // 不仅分发了当前生命周期事件，还分发了 ON_ANY
    invokeMethodsForEvent(mEventToHandlers.get(event), source, event, target);
    invokeMethodsForEvent(mEventToHandlers.get(Lifecycle.Event.ON_ANY), source, event,
            target);
}

private static void invokeMethodsForEvent(List<MethodReference> handlers,
        LifecycleOwner source, Lifecycle.Event event, Object mWrapped) {
    if (handlers != null) {
        for (int i = handlers.size() - 1; i >= 0; i--) {
            handlers.get(i).invokeCallback(source, event, mWrapped);
        }
    }
}

void invokeCallback(LifecycleOwner source, Lifecycle.Event event, Object target) {
    //noinspection TryWithIdenticalCatches
    try {
        switch (mCallType) {
            case CALL_TYPE_NO_ARG:
                mMethod.invoke(target);
                break;
            case CALL_TYPE_PROVIDER:
                mMethod.invoke(target, source);
                break;
            case CALL_TYPE_PROVIDER_WITH_EVENT:
                mMethod.invoke(target, source, event);
                break;
        }
    } catch (InvocationTargetException e) {
        throw new RuntimeException("Failed to call observer method", e.getCause());
    } catch (IllegalAccessException e) {
        throw new RuntimeException(e);
    }
}
